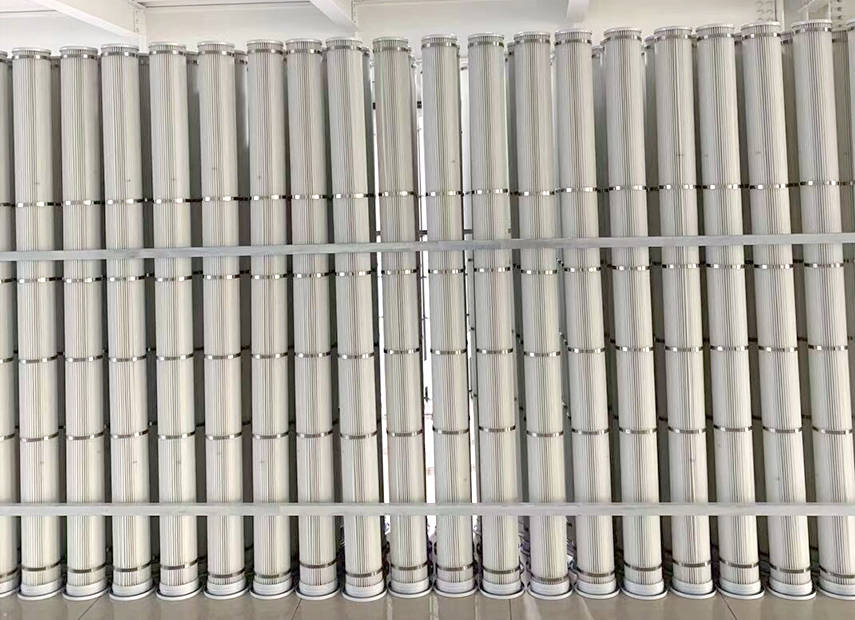

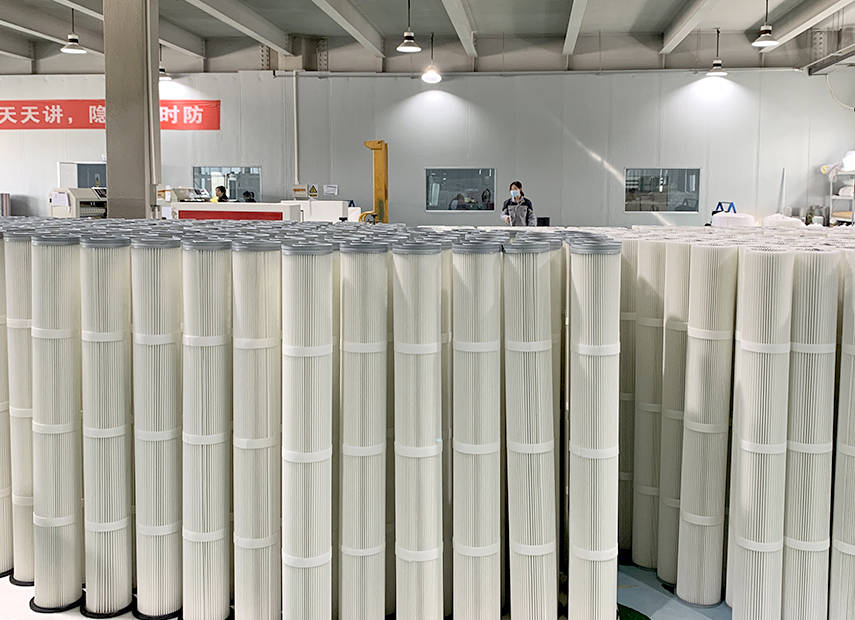

Compared with traditional filter bags, pleated filter cartridges have obvious advantages such as large filtration area, small space and high filtration efficiency.
01 Integrated design, eliminating the need for cage installation steps, easier to install than traditional filter bags, greatly saving on-site downtime
02 The bottom of the filter cartridge is reinforced to reduce wear and tear, which can effectively alleviate the damage caused by the airflow to the bottom of the traditional filter bag
03 Wide pleat design, low pulse air pressure requirement for dust cleaning, saves compressed air, and can provide a large filter area in a small space
Advantages of disassembly: short and few filter elements, easy to install (top loading), easy to repair and replace
When replacing a conventional filter bag, it is necessary to remove the bag cage first, and then remove the filter bag; the pleated filter cartridge adopts an integrated structure, which only needs to be disassembled and installed once.
The filter area is increased by 2-5 times, and the filter wind speed is greatly reduced
The filter area of the filter cartridge of φ130*2000mm is equivalent to the equivalent filter bag of φ130*7300mm to φ160*10000mm.
The filter area of the filter cartridge of φ160*2000mm is equivalent to the equivalent filter bag of φ160*6000mm to φ160*10000mm.
The cleaning cycle/cleaning strength is significantly reduced, prolonging the service life of the filter cartridge
Simply lengthening the filter bag will form a turbulent flow at the bottom of the dust collector, on the one hand, it will blow up the dust in the ash hopper, and at the same time, it will affect the fall of the dust after cleaning.
Brings valuable benefits to the business
♦Increase the filtration area and improve the filtration efficiency
♦ Promotes better airflow and increases air flow
♦ Reduce operating pressure difference
♦No longer need bag cage skeleton
♦Reduce the flow rate of air passing through the filter material
♦Reduce the consumption of compressed air
♦Easy to install and remove
The most important thing is that the installation usually does not need to modify the existing dust removal equipment, which can meet the environmental protection policy of ultra-low emissions, and save energy for the enterprise, without requiring the enterprise to bear high project rectification costs.
