For a long time, the cement industry has developed rapidly in terms of production technology and dust removal technology. However, the current dust removal technology focuses on the production process of raw material preparation and clinker firing, and less attention is paid to the dust generated during the cement bagging process. Dust pollution in this work link has become a major disaster area for cement plants, so solving the problem of dust during loading in the packaging workshop is of great significance to alleviating the increasingly severe air pollution problem and improving the working environment of employees.

  However, in reality, a few cement plants in my country have renovated related equipment on their own, and their dust collection effect is not up to the ideal state. Even some cement plants originally installed bagged truck dust collection equipment, but the dust collection effect was poor Discard or dismantle. For this reason, in order to solve the problem of bagging machine dust collection, Lifeldt has successfully developed a new type of bagging machine dust collection system after long-term persistent technical research and development and exploration, which greatly solved the problem. Dust pollution in the bagging workshop of a cement plant.

Power industry dust control scheme treatment effect introduction: the original intention of LEFILTER research and development of new bag loading machine dust collection system is that in its long-term contact with the majority of cement enterprises, the company found that the traditional cement enterprises will always face a series of technical problems in the use of bag loading machine dust collection equipment, such as realizing the synchronous movement of dust collection system and bag loading machine To realize the matching of the dust collection system with bagged cement trucks of different heights and achieve good dust collection effect at the same time, and the original loading function will not be affected after the dust collection system is installed. These problems have not been effectively solved, resulting in a large number of dust emissions and environmental pollution for a long time, and the staff have been in such a harsh environment for a long time.

Because of this, the engineers of LEFILTER are determined to use their own expertise to overcome this long-term technical difficulty. In order to fundamentally solve the above-mentioned technical problems, after more than a year of unremitting efforts, through the field investigation of different cement manufacturers, and repeated technical comparison, the final design of the bag loading dust collection system is completed. The technology greatly solves the problem of cement dust pollution in the cement bag loading workshop, and the system is suitable for all cement plants. The emission standard reaches 10mg / Nm3

Dust collection system solution for loading machine:

Component unit

The components of the dust collection system of the bag loading machine independently designed by Lifeierte are: (1) Dust collector (2) Dust collection fan (3) Dust collection telescopic pipe (4) Mobile trolley (5) Dust hopper (6) Dust collection soft Tube (7) Dust collection pipe (8) Cleaner ⑼ Dust collection bellows head. The key equipment of this dust collection system of Siwei Machinery is: fixed ventilation box, mobile arched box, mobile trolley, hoisting hoist, and dust collection telescopic sleeve.

　　Introduction to the structure

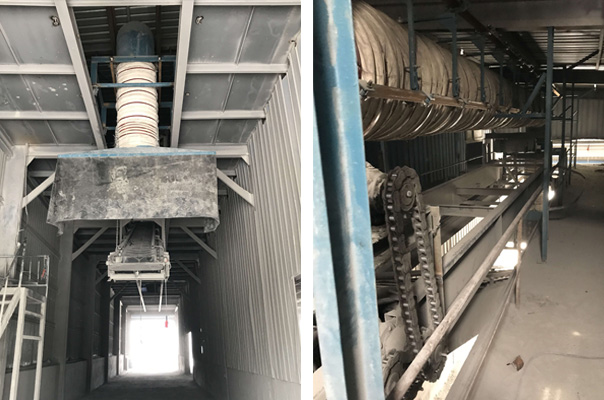

The bagged car system consists of a pulse bag dust collector (including ash bin and ash conveying device), dust collector fan, walking trolley (synchronized with bagged car machine), telescopic tube, dust collector telescopic sleeve, dust collector telescopic Cover head, dust collection pipeline (including main pipeline and branch pipeline), pneumatic switching air control valve and electric control system.

　　 Installation requirements

　　 1. Before the installation of the dust collection system, all pipes, components and other parts must be assembled after they are accepted piece by piece.

　　 2. All moving parts of the system should be filled with grease.

　　3. Ensure that all electrical components and limit protection switches operate normally.

　　 4. The connection of cables and wires should be carried out in strict accordance with the requirements of construction standards.

　　 5. Check and clean up the installation site before installation.

　　 6. Check and tighten the fastening bolts of each connection.
