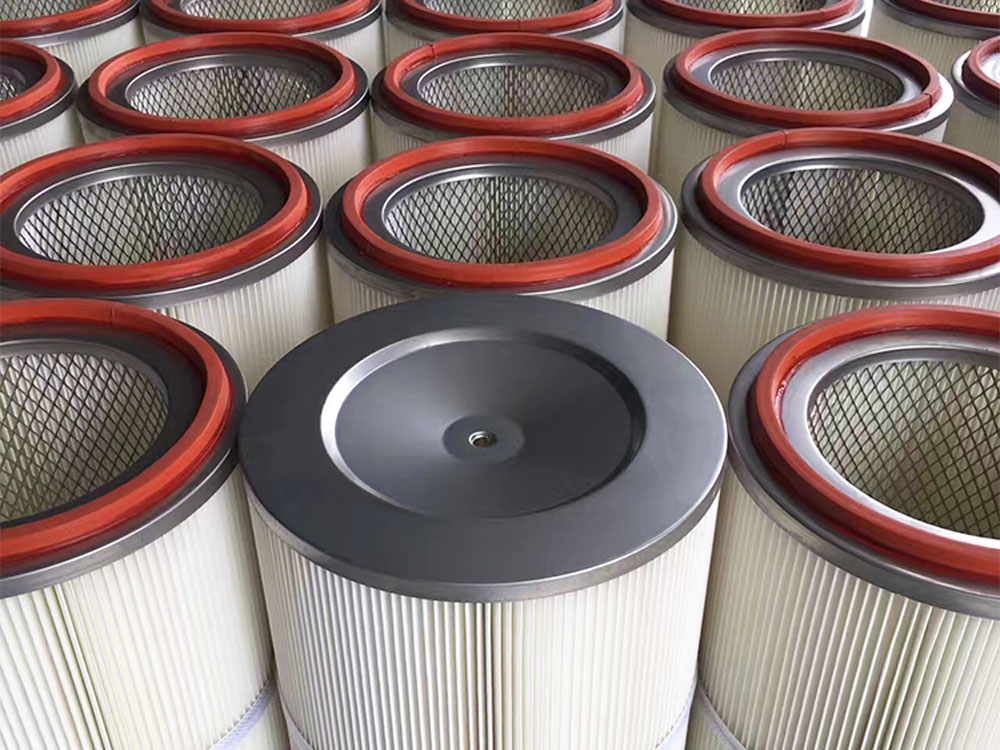

Polyester Air Filter Cartridge has very high filtration efficiencies on fine particulate, along with high resistance to abrasion and chemicals. This media provides superior dust cake release properties compared to paper media. Spun bond media is particularly suitable for pharmaceutical manufacturing, powder coating or fibrous materials such as wood or fiber glass.
Filter Media Types:
1.100% spun bond polyester

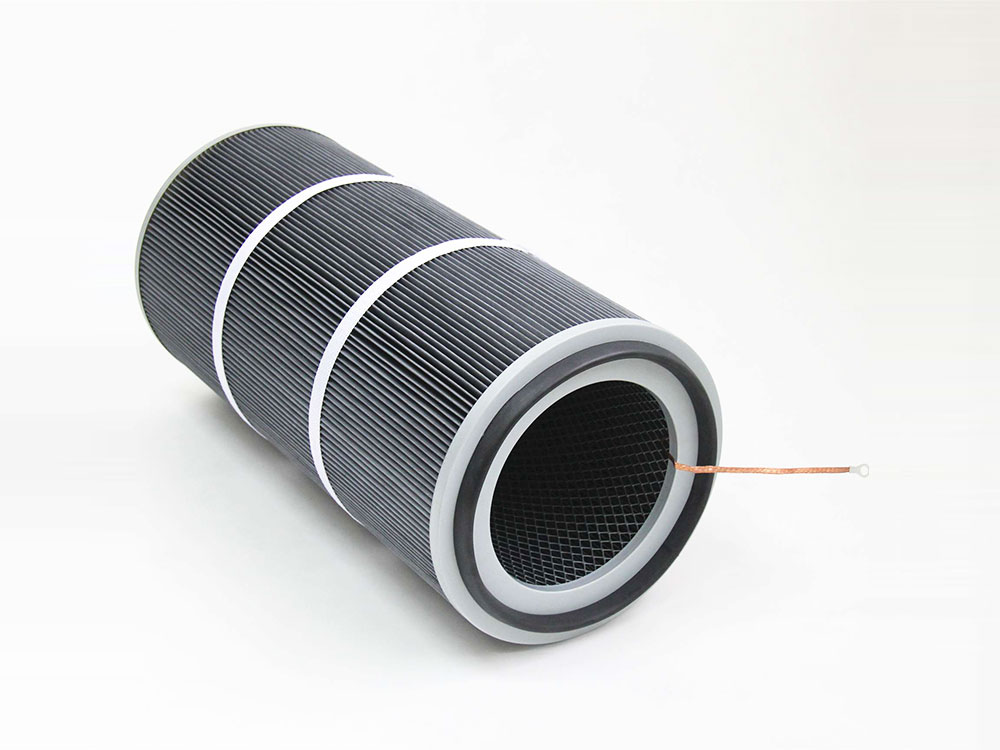

2.Polyester with antistatic treatment
3.Polyester with oil & water repellant treatment
4.Polyester with PTFE membrane
Features:
1.Durable and rigid material, washable
2.Excellent resistance against electric conductance, oil and water
3.Wide pleat spacing and smooth, hydrophobic PTFE provides excellent dust cake release
4.Highest filter efficiency to meet the stringent efficiency requirements
5.Excellent resistance to chemical erosion
Applicable Temperature: 120°C
Typical Applications:
Filtration for very fine dust types in Metal, Woodworking, Chemical, Pigment, Cement, Food Paper, Plastic, Sandblasting, Powder Coating,Welding Fume, Foundry, Pharmaceutical and other sticky agglomerative dust collections.
Technical Data:
| Model | O.D | I.D | Length | Diameter of hole |
| LF/Z3266 | Φ324mm | Φ213mm | 660mm | Φ14 |
| LF/Z3275 | Φ324mm | Φ213mm | 750mm | Φ14 |
| LF/Z3566 | Φ352mm | Φ241mm | 660mm | Φ16 |
| LF/Z3288 | Φ324mm | Φ213mm | 880mm | Φ16 |
| LF/Z3290 | Φ324mm | Φ213mm | 915mm | Φ16 |
Model display
Cellulose Air Filter Cartridge is suitable for the filtration of fine dust type in gas turbines, compressors, shot blast, tobacco, pulverized coal ash and floating dust collection;
details

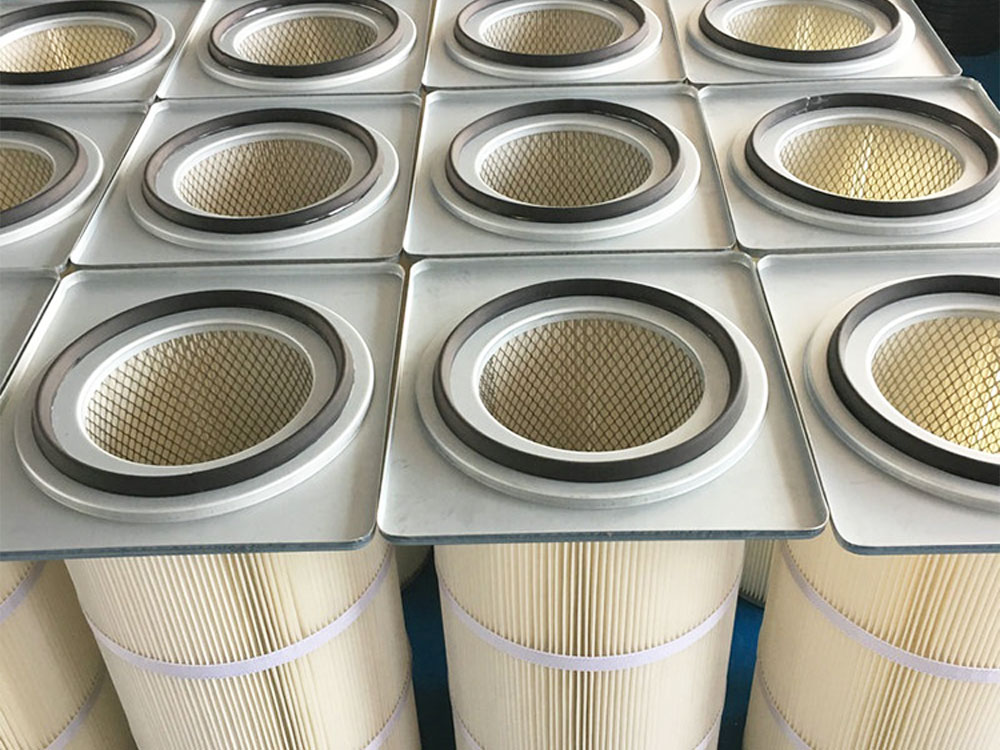

Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.
details
Gas Turbine Air Intake Filter cartridges are modern and reliable for air intake applications. They ensure high efficient filtration of dust and other contaminants even in the most polluted environments. Normally these are made of mixture of polyester & cellulose and Nanofiber media. These media have much better pleat ability & dimensional stability.
detailsWe are equipped with advanced manufacturing facilities. The CNC equipments can ensure the best quality of our products. We test every piece of products before they leave our factory. Each product is well packed and will be delivered to customers in good conditions.
We offer after sale services for all of our products. If you have questions on the installations or operations of our products, please feel free to contact our engineers. We will be your first aid when you meet any problem on our products or services.
